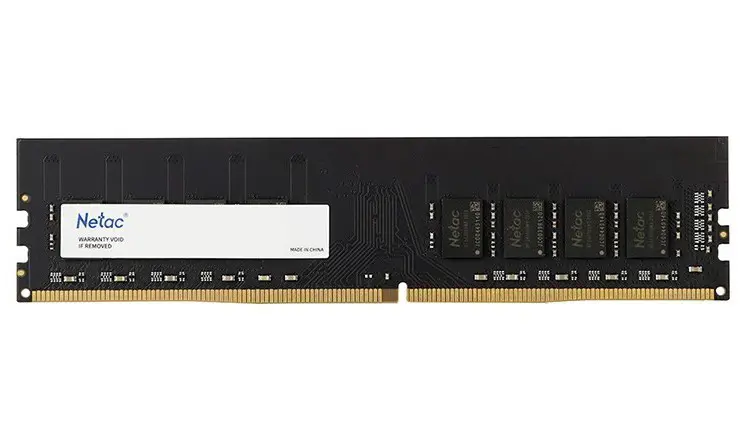

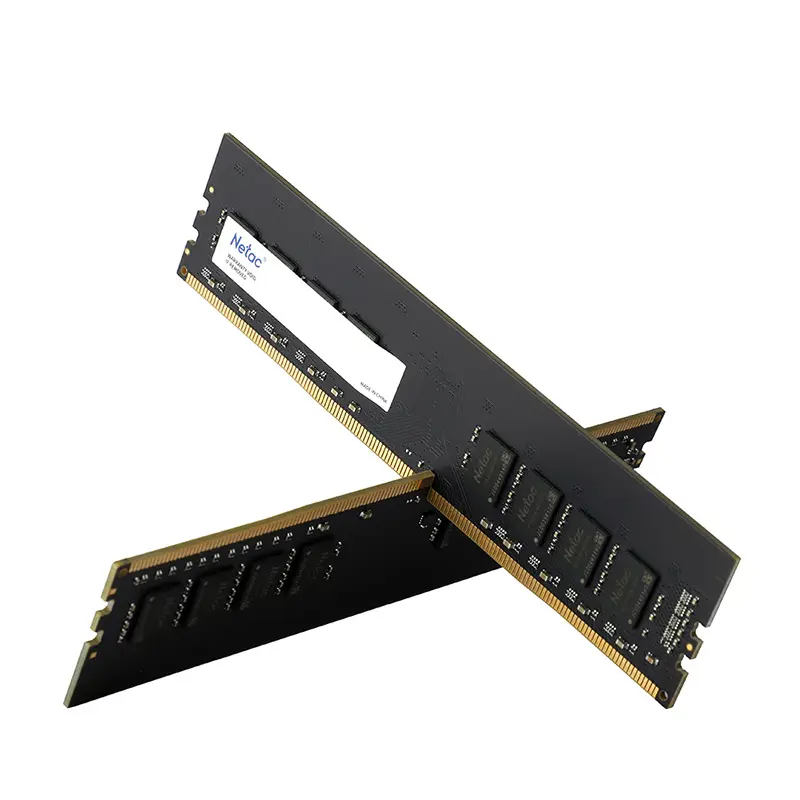

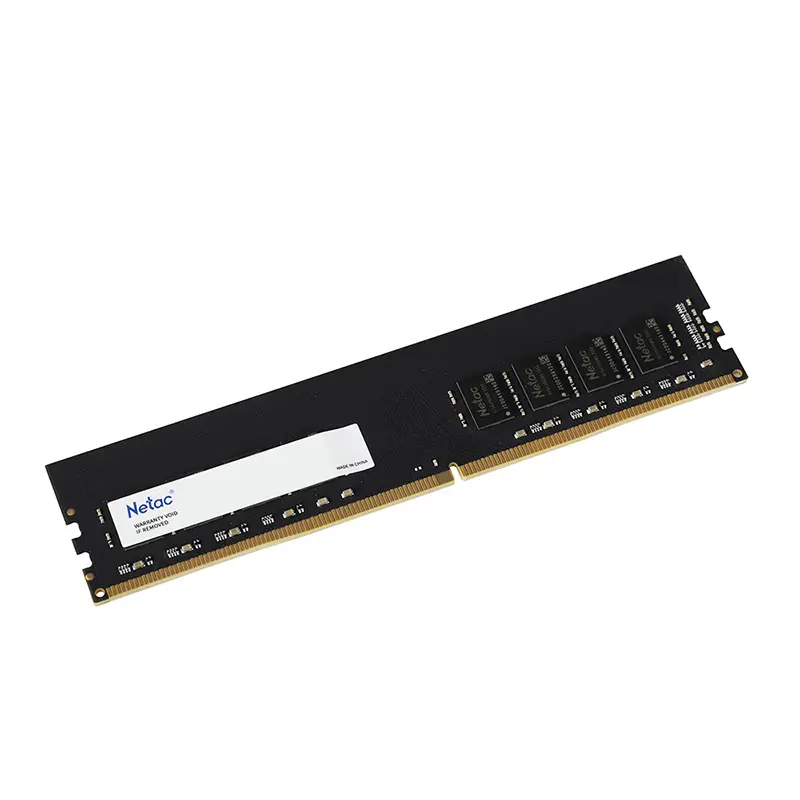

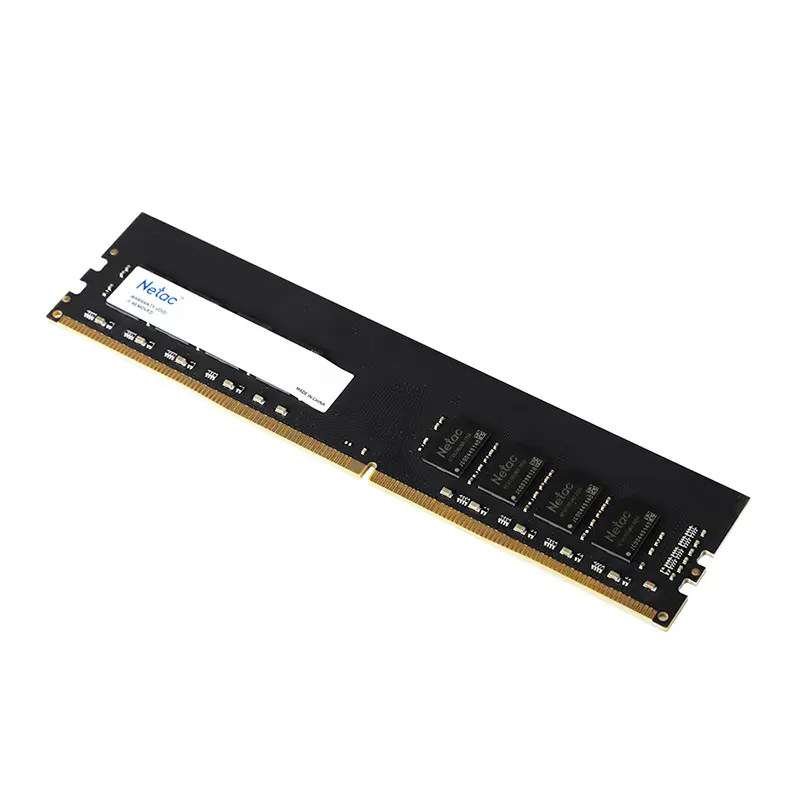

Netac Basic 8GB DDR4 C22 U-DIMM Desktop Memory

Netac Unbuffered DDR4 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR4 SDRAM devices. Each 288- pin DIMM uses gold contact fingers.
  • 8GB DDR4-3200
  • CL22 Cas Latency
  • 8-layer PCB board, stable performance
  • Excellent compatibility
Memory Capacity: 8GB
Product Code: NTBSD4P32SP-08J
Brand: Netac
Warranty: 2 Years - Warranty
Availability: On Order Only
Rs. 9,750
Features
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • On-board I2C serial presence-detect (SPD) EEPROM
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Databus write cyclic redundancy check (CRC)
  • Temperature controlled refresh (TCR)
  • Command/Address (CA) parity
  • Per DRAM Addressability is supported
  • 8 bit pre-fetch
  • Fly-by topology
  • Command/Address latency (CAL)
  • Terminated control command and address bus
  • PCB: Height 1.23” (31.25mm)
  • Gold edge contacts
  • RoHS Compliant and Halogen-Free
